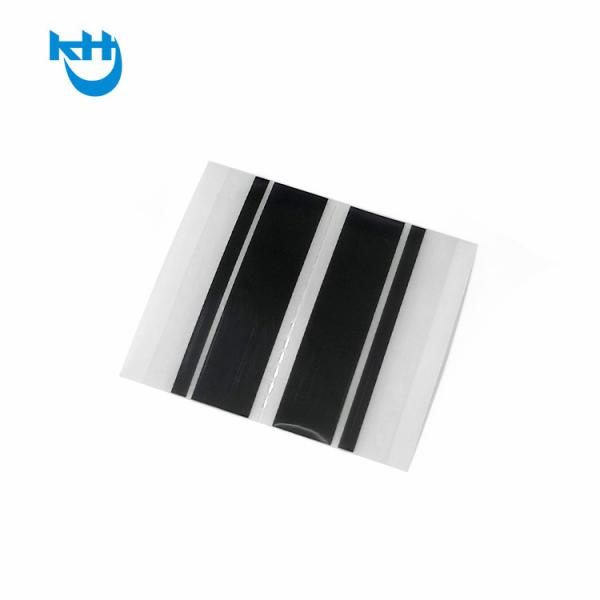

Electronic Assembly SMT Splicing Tape 12mm Reduce Reel Change Downtime

Brand Name : KangHongJin

Model Number : M23 series

Certification : RoHS

Place of Origin : Guangdong, China

Product Name : M23 series

Material : PET

High Light : SMT splice tape, smd tape splice，Splice tape, SMT splice tape wholesaler, SMT tape, Black SMT Splice Tape, SGS smt tape, SGS SMT Splice Tape

Contact Now

Electronic Assembly SMT Splicing Tape 12mm Reduce Reel Change Downtime

DESCRIPTION

M23 series single splice tape is used for jointing carrier tapes in the SMT process. It is made of 4

splice tapes, release paper and PET material with superior adhesion. This splice tape is made by our
produced glue.

Part (reel)
Dimensions (pc)
Package
 Electronic Assembly SMT Splicing Tape 12mm Reduce Reel Change Downtime
M2308 (8mm)

2.5/4/4/2.5mm x 40mm

 500pcs/box
M2312 (12mm) 2.5/6/6/2.5mm x 40mm 500pcs/box
M2316 (16mm) 2.5/9/9/2.5mm x 40mm 500pcs/box
M2324 (24mm) 2.5/16/16/2.5mm x 40mm 250pcs/box

APPLICATION ADVANTAGES

1. Strips of PET tape used to join

1. Increase Pick and Place machine output

8-88mm SMT carrier tapes

by 5% - 30%

2. Possible to use without the splice

2. Reduce reel change downtime

tool and clip

3. Decrease machine abrasion by reducing

3. 32mm-88mm available upon request

the need to reload the feeder

INSTRUCTIONS

1. Use the splice cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the splice guide placement

4. Fold over the other strip to the underside of the carrier tape and press firmly

5. Remove the guide placement from joined carrier tapes

6. Remove and discard the clear plastic cover to complete the splice

ceo@szsmt. com
